Deploying the VotingApp

2 minutes read

The VotingApp can be deployed using Helm. It has many configuration options, the default values of which are defined in the following values.yaml file.

We’ll explore some of those parameters in the next part, but for now, you’ll deploy the VotingApp using the default values as follows:

helm install vote oci://registry-1.docker.io/voting/app --version v1.0.36 --namespace vote --create-namespace

In the background, it creates a Deployment with one Pod replica for each microservice:

$ kubectl get po -n vote
NAME                         READY   STATUS    RESTARTS   AGE
db-7fb64787d4-5nnvl          1/1     Running   0          12s
redis-7f746b589b-f8xnb       1/1     Running   0          12s
result-5c9d7b7484-lkd2c      1/1     Running   0          12s
result-ui-76c98c9cbd-zd7d8   1/1     Running   0          12s
vote-65d95d8fc7-gvnsm        1/1     Running   0          12s
vote-ui-57cb5f4f65-cfq5j     1/1     Running   0          12s
worker-7cfccf8f76-5f6mp      1/1     Running   0          12s

Since the application is deployed with the default values, the vote-ui and result-ui web frontends are exposed using the NodePort Service type:

$ kubectl get svc -n vote
NAME        TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)        AGE
db          ClusterIP   10.103.163.197   <none>        5432/TCP       49s
redis       ClusterIP   10.100.254.235   <none>        6379/TCP       49s
result      ClusterIP   10.106.156.29    <none>        5000/TCP       49s
result-ui   NodePort    10.111.35.241    <none>        80:31001/TCP   49s
vote        ClusterIP   10.96.177.44     <none>        5000/TCP       49s
vote-ui     NodePort    10.105.215.174   <none>        80:31000/TCP   49s

Using the following command, get the external IP of any node and verify you can access the web frontends on port 31000 (vote-ui) and 31001 (result-ui)

$ kubectl get no -o wide

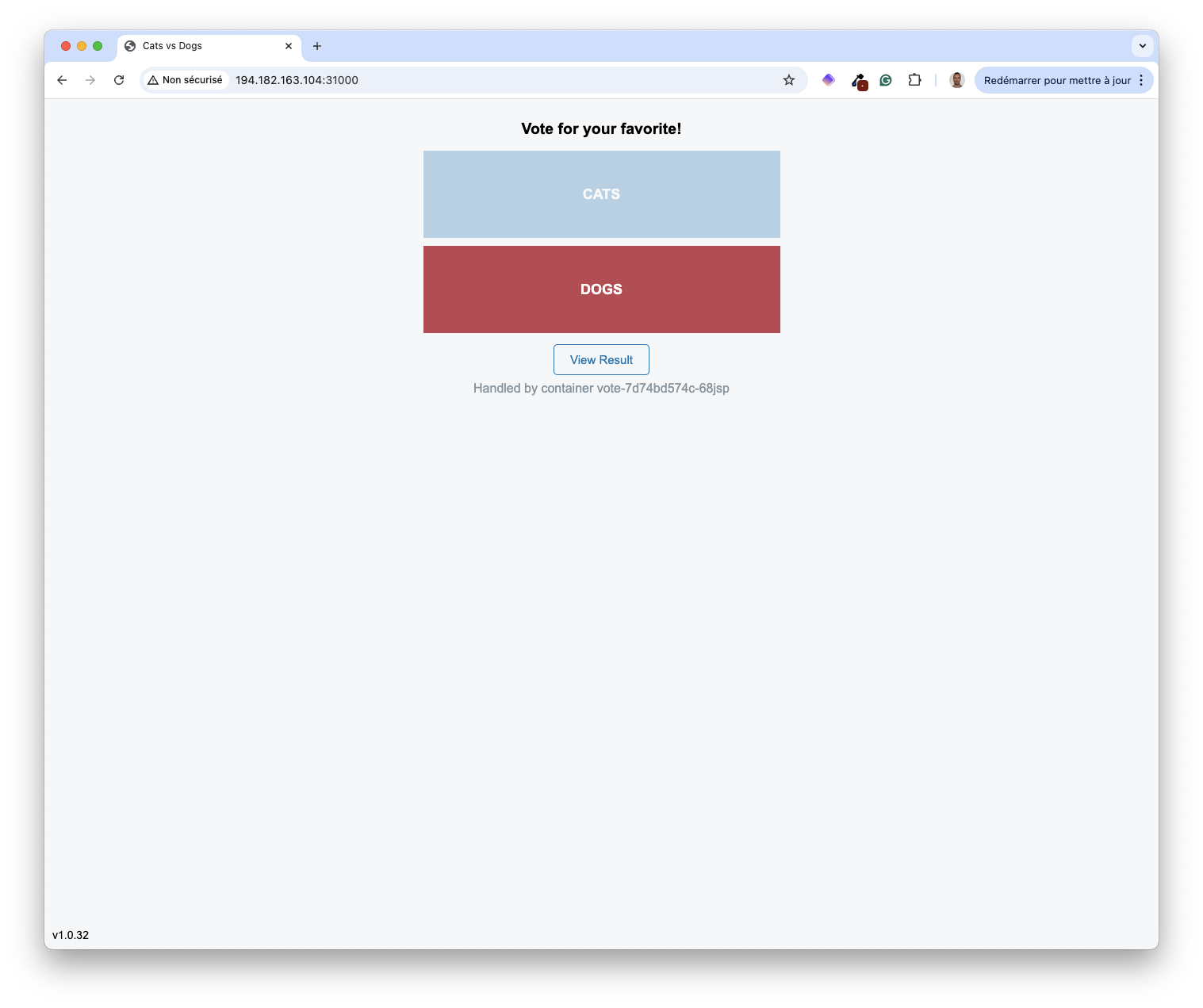

Vote

Result

Using NodePort Services is not a recommended way to expose production application; for this purpose, we need to use a LoadBalancer Services, as we will explore in the next section.
