Activating TLS

2 minutes read

While configuring TLS is recommended for security, you can still access your app without it for this workshop. Follow the optional steps to enable TLS using Let’s Encrypt.”

In the previous section, you exposed the VotingApp frontends on your own subdomains, or you used duckdns.org to create ones. Both interfaces are accessible through plain HTTP, which is not secure. In this section we’ll detail how to expose the application through HTTPS.

This example uses votingapp.cc domain. If you follow along, feel free to use your own domain name.

Installing Cert-Manager 🔗

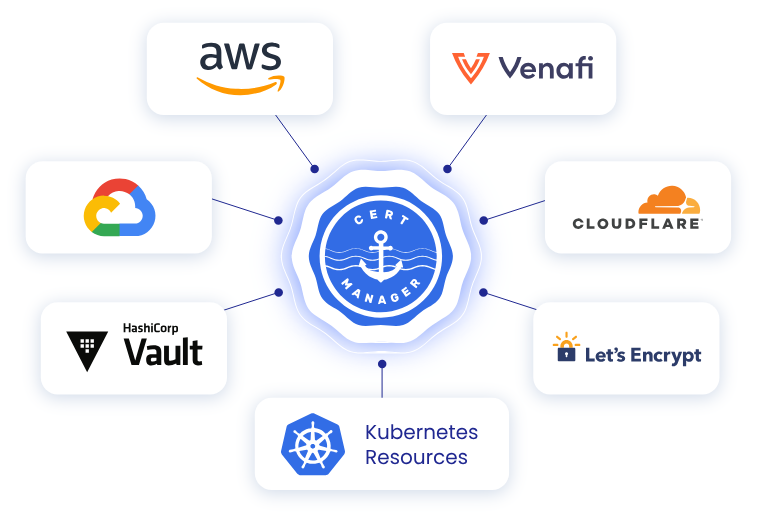

Cert-manager is a widely used tool of the Kubernetes ecosystem, it automates the issuance and renewal of TLS certificates. It integrates with various Certificates Authorities, including Let’s Encrypt the one we’ll use in this example.

Install Cert-manager in your cluster using Helm:

helm repo add cert-manager https://charts.jetstack.io
helm install cert-manager cert-manager/cert-manager --version 1.16.2 -n cert-manager --create-namespace --set crds.enabled=true

Next, create a file named clusterissuer.yaml with the following content. This defines a resource of type ClusterIssuer which specifies the CA used to request a certificate and the challenge used to prove the ownership of the domain (HTTP01 in this example).

Replace the placeholder YOUR_EMAIL_ADDRESS with your real email address before creating this resource.

apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
  name: letsencrypt
spec:
  acme:
    email: YOUR_EMAIL_ADDRESS
    server: https://acme-v02.api.letsencrypt.org/directory
    privateKeySecretRef:
      name: acme-account-key
    solvers:
    - http01:
       ingress:
         class: traefik

In this example, we use LetsEncrypt’s production environment. For testing purposes, we could use the staging environment whose URL is https://acme-staging-v02.api.letsencrypt.org/directory. This is a good way to test certificate issuance, and it provides higher rate limits.

Then, create the resource.

kubectl apply -f clusterissuer.yaml

Updating the application 🔗

First, enable TLS using the dedicated property in the values.yaml file:

ingress:
  enabled: true
  tls:
    enabled: true                   # Enabling TLS
  hosts:
    vote: vote.votingapp.cc         # Replace with the domain you used in the previous section
    result: result.votingapp.cc     # Replace with the domain you used in the previous section

Next, update the application:

helm upgrade --install vote oci://registry-1.docker.io/voting/app --version v1.0.36 --namespace vote --create-namespace -f values.yaml

In the background, a Secret is created. It contains a TLS certificate for your subdomains.

$ kubectl get certificate -n vote
NAME       READY   SECRET     AGE
tls-vote   True    tls-vote   20m

Accessing the application 🔗

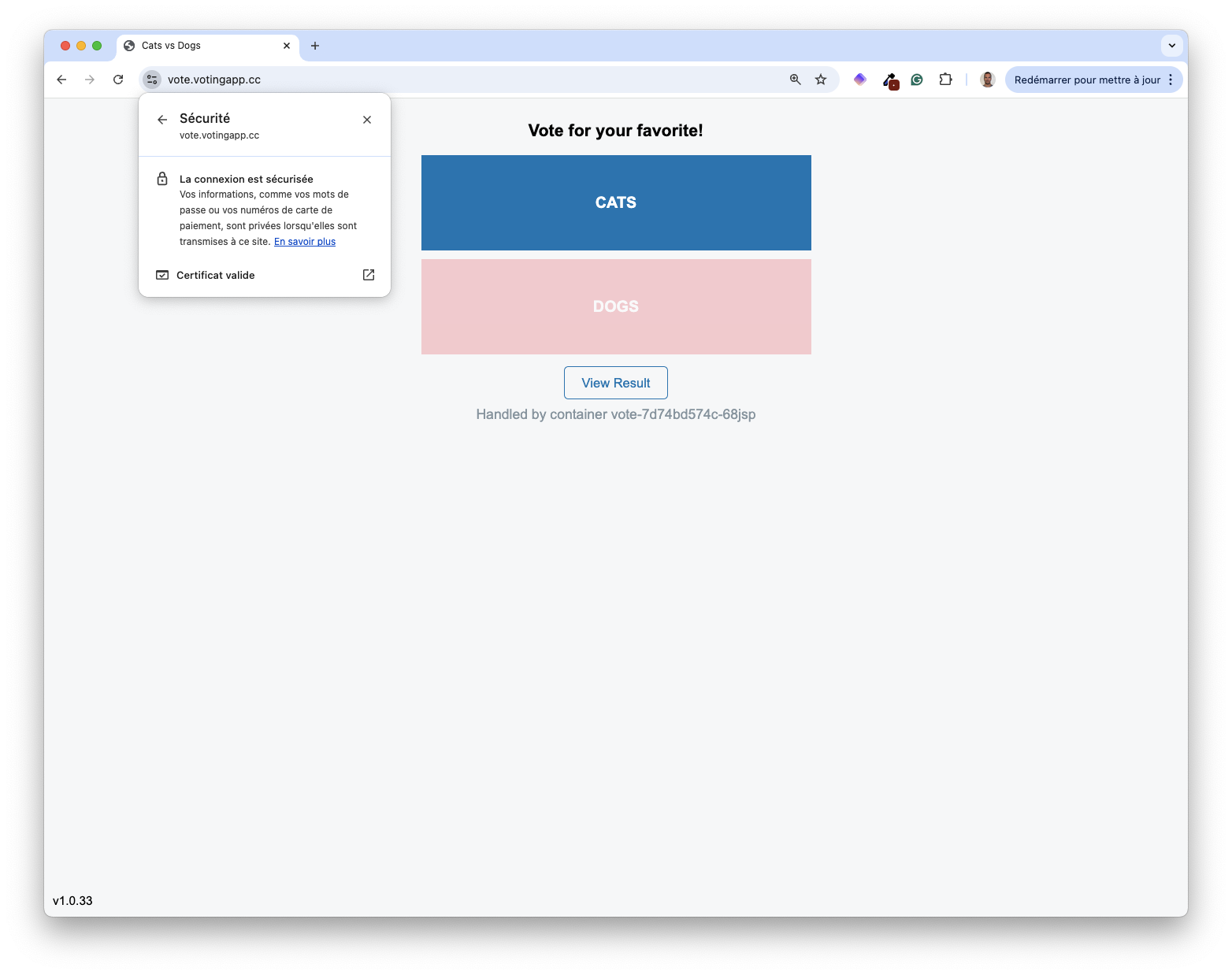

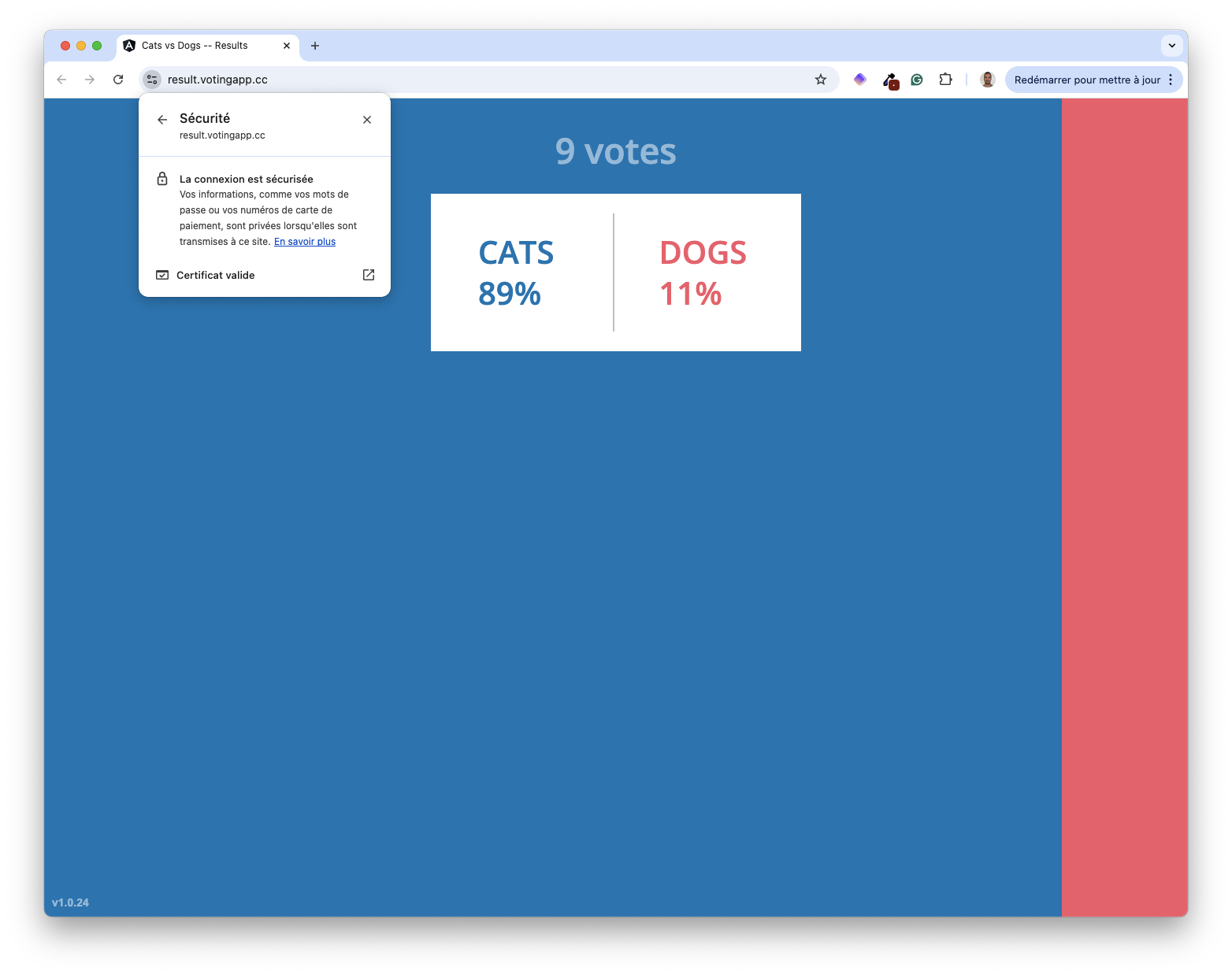

Both vote-ui and result-ui web interfaces are now accessible through HTTPS.

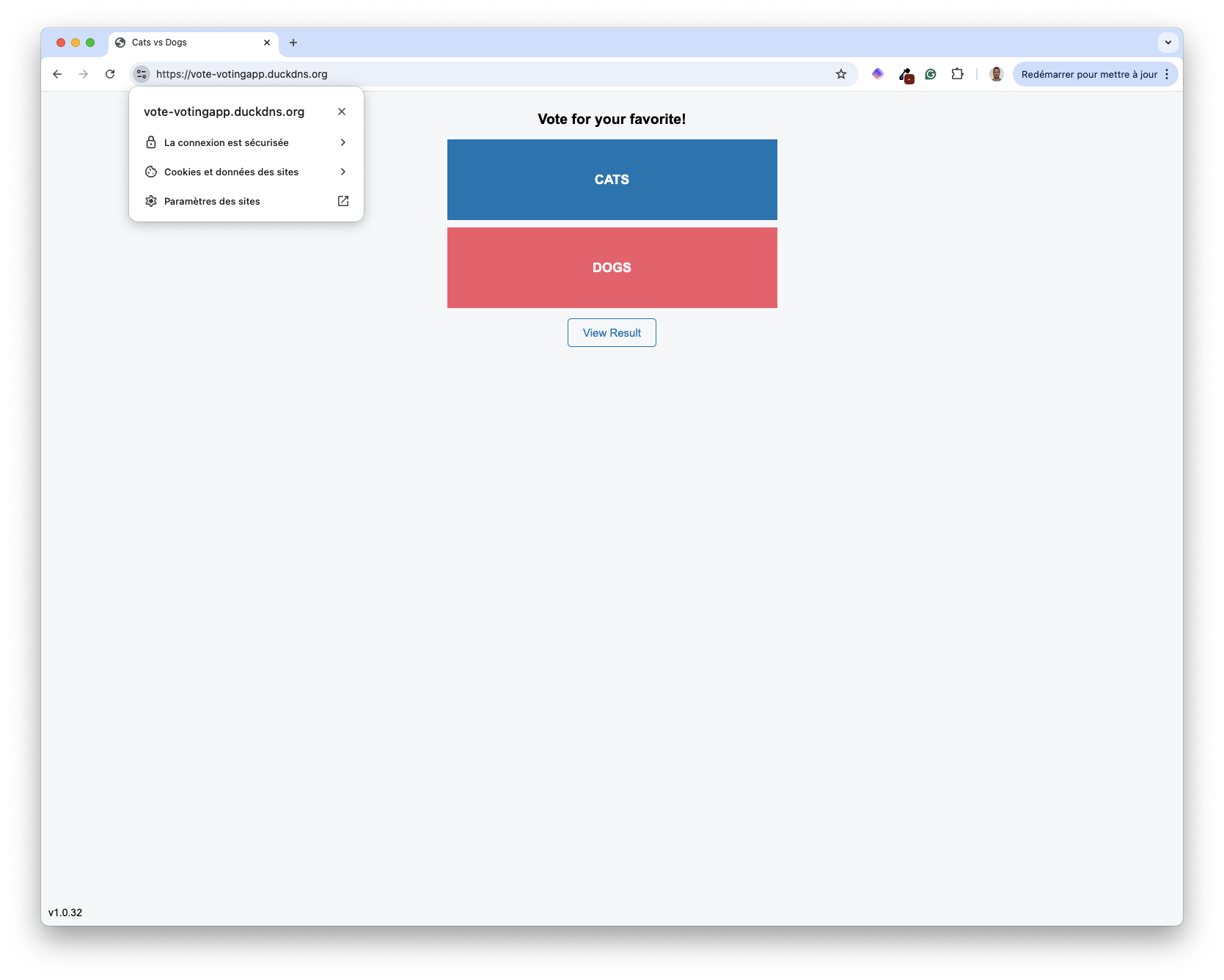

If you are using free subdomain names from DuckDNS, you’ll get a similar result as TLS Certificates can be issued for these subdomains as well.
