Solution

1 minute read
  1. The specification for the Ingress resource is as follows:
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: vote
spec:
  ingressClassName: traefik
  rules:
  - host: vote.votingapp.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: vote-ui
            port:
              number: 80
  - host: result.votingapp.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: result-ui
            port:
              number: 80
  1. Deploy the application with the following command from the manifests directory:
kubectl apply -f .

You can then access the different interfaces using real domain names instead of a port number.

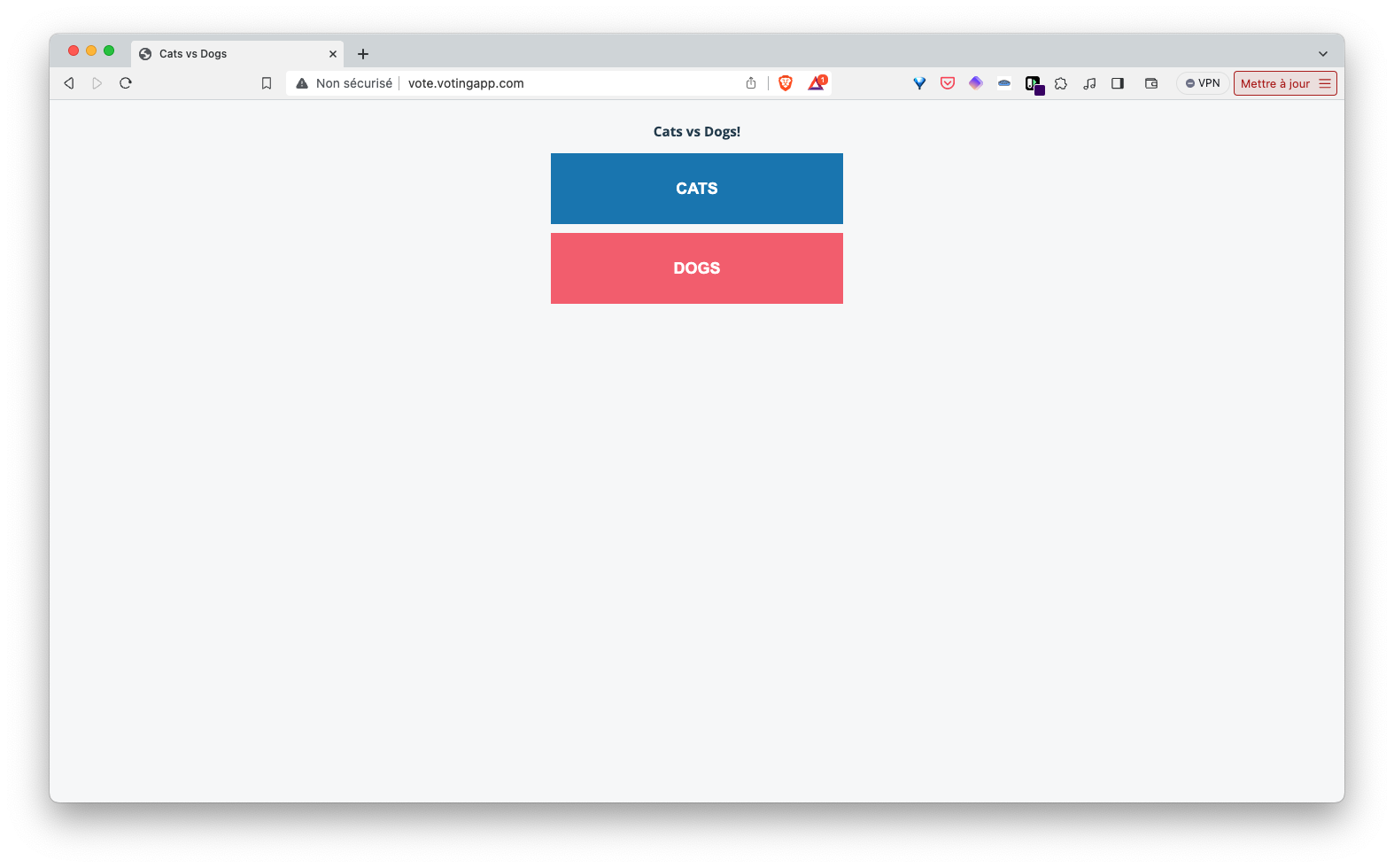

Vote

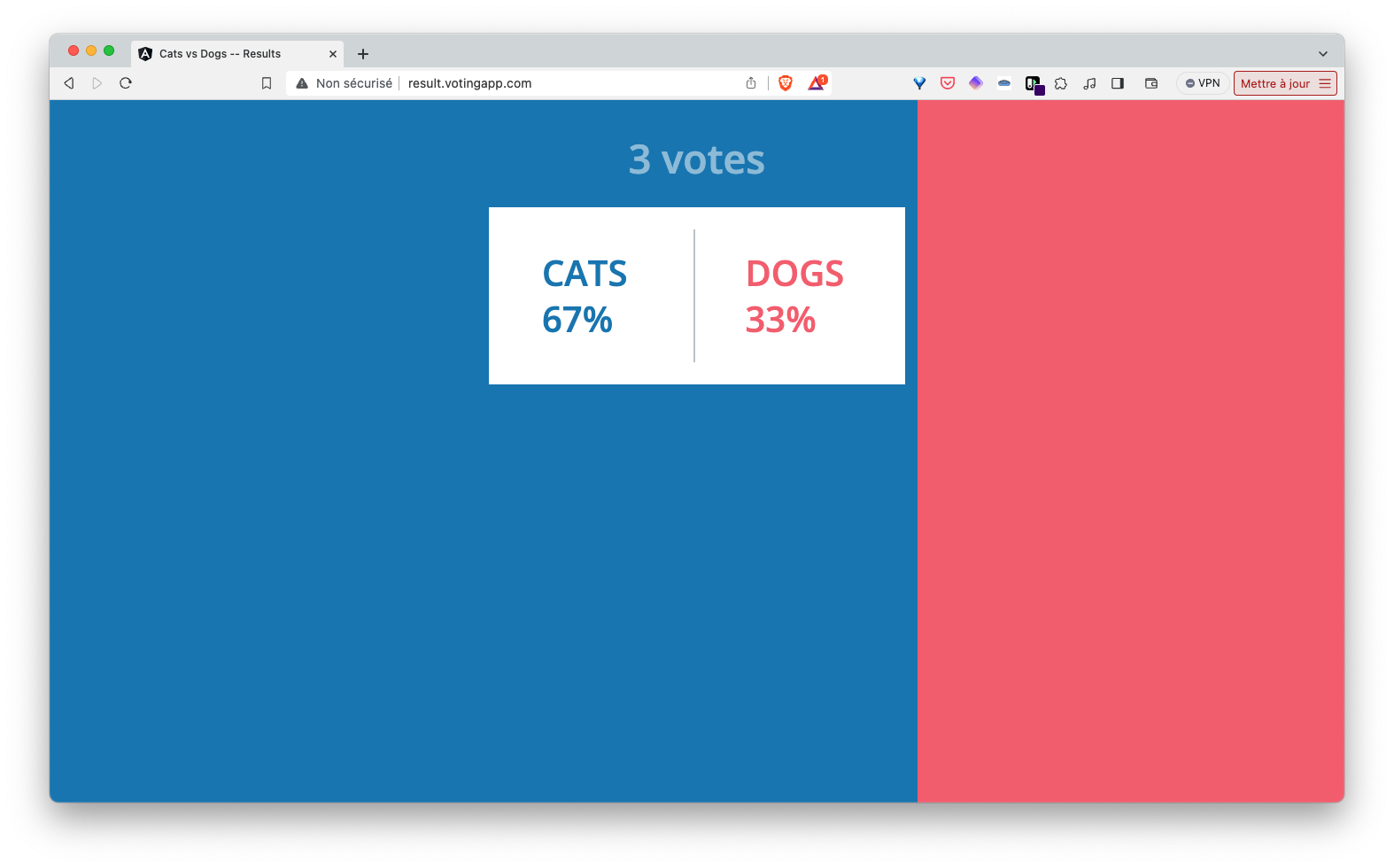

Result

  1. Delete the application with the following command from the manifests directory:
kubectl delete -f .
