External Secrets Operator

4 minutes read

In this section, we present External Secrets Operator, a tool that automates the creation of Kubernetes Secrets.

Prerequisites 🔗

We need a Kubernetes cluster. We can create one following these instructions. We also need the kubectl binary configured with the cluster’s kubeconfig, and the helm binary.

About External Secrets 🔗

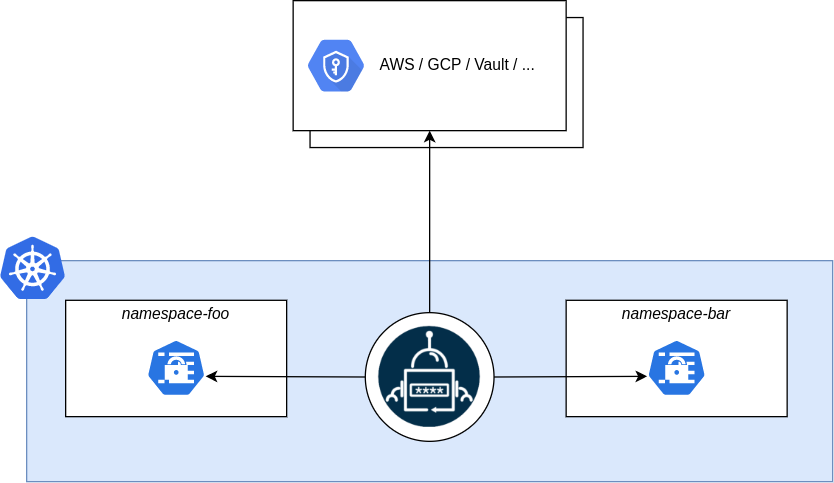

External-secret is in charge of creating Kubernetes Secrets from sensitive data stored in secure backends including HashiCorp Vault, Doppler, …

Installing External Secrets 🔗

helm repo add external-secrets-operator https://charts.external-secrets.io/
helm install external-secrets external-secrets-operator/external-secrets --version 0.12.1 -n external-secret --create-namespace

Using a Secure backend 🔗

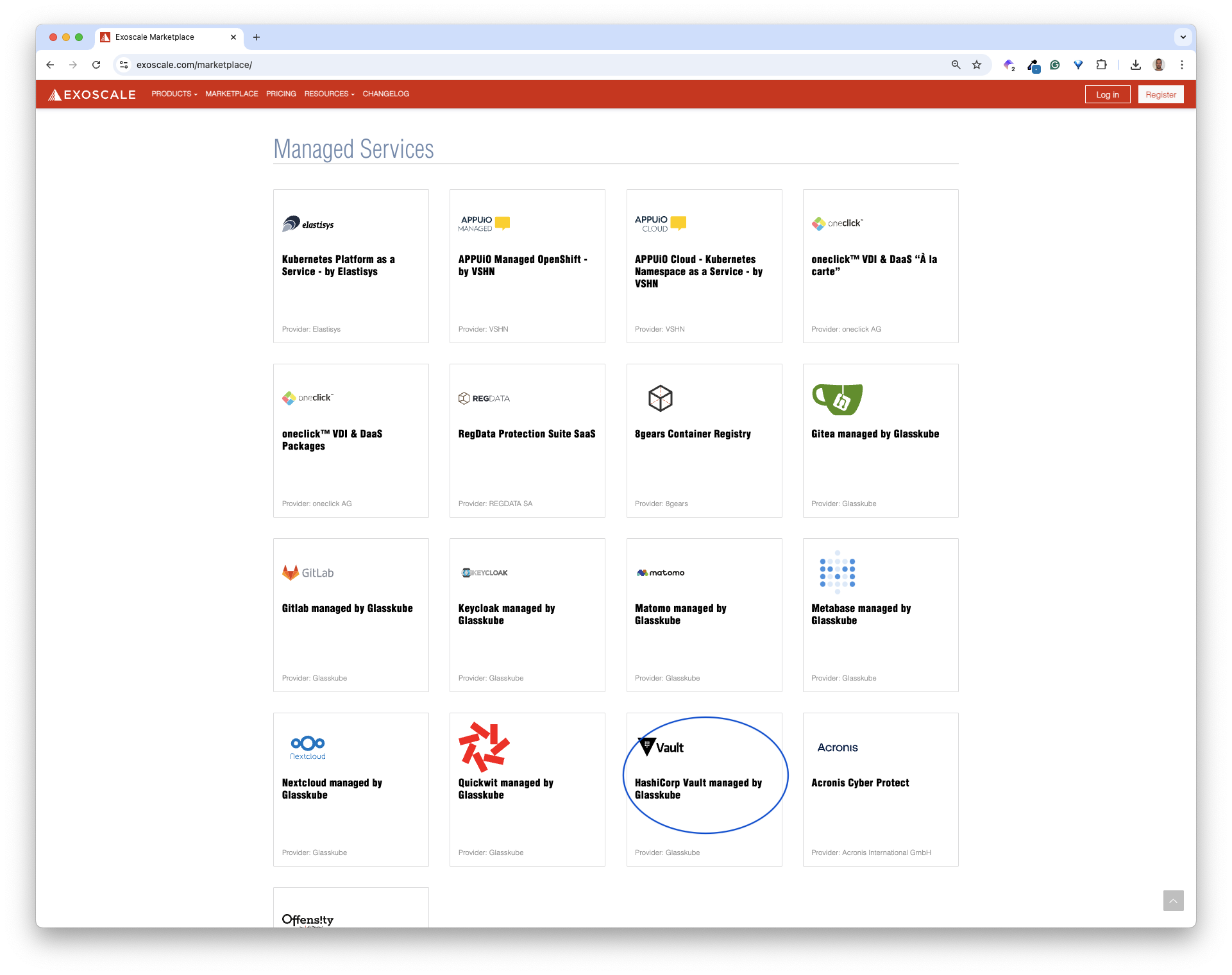

In this example, we use a Hashicorp Vault instance launched from the Exoscale Marketplace

We will not go into the details of deploying Vault. Please follow the instructions from this article if you want to install Vault in your Exoscale organization.

Next, we save its URL in the VAULT_ADDR environment variable as we will manage it from the command line.

export VAULT_ADDR=https://vault3.exodemos.exo.gkube.eu

We unseal the Vault using the unseal keys provided at launch time.

vault operator unseal

Next, we log in using the ROOT token.

vault login

Then, we create a new kv secrets engine mounted at my-app.

We use the newest, version 2, kv secrets engine, which allows versioning.

$ vault secrets enable -path=my-app -version=2 kv
Success! Enabled the kv secrets engine at: my-app/

In the next section, we’ll store sensitive data in this secret engine.

Storing a piece of data in Vault 🔗

We create a secret containing the admin password of our application.

$ vault kv put my-app/admin password=45Ssdfljkshd4r

== Secret Path ==
my-app/data/admin

======= Metadata =======
Key                Value
---                -----
created_time       2025-01-21T19:32:29.396078149Z
custom_metadata <nil>
deletion_time      n/a
destroyed          false
version            1

Next, we define a policy allowing read access to the data within the my-app kv secrets engine.

path "my-app/data/admin" {
 capabilities = ["read"]
}

Next, we create this policy.

$ vault policy write my-app-readonly policy.hcl

Success! Uploaded policy: my-app-readonly

Then, create a token attached to this policy.

$ vault token create -policy=my-app-readonly

Key                  Value
---                  -----
token                hvs.CAESILb6Gfc9vJhJcG-iPIUAoVOxCpd2KFF2V128wSLG4O2HGh4KHGh2cy5hRGtQcDFzZU5taWtBTHpzV293ZE5MWGs
token_accessor       eapSkHp5lUglAp637ZYPUhX8
token_duration       768h
token_renewable      true
token_policies ["default" "my-app-readonly"]
identity_policies []
policies ["default" "my-app-readonly"]

Then, we log in using this token.

vault login

We also save this token in the VAULT_TOKEN environment variable.

export VAULT_TOKEN="hvs.CAESILb6Gfc9vJhJcG-iPIUAoVOxCpd2KFF2V128wSLG4O2HGh4KHGh2cy5hRGtQcDFzZU5taWtBTHpzV293ZE5MWGs"

Finally, we verify we can read the content of the secret.

$ vault kv get my-app/admin

== Secret Path ==
my-app/data/admin

======= Metadata =======
Key                Value
---                -----
created_time       2025-01-21T19:32:29.396078149Z
custom_metadata <nil>
deletion_time      n/a
destroyed          false
version            1

====== Data ======
Key         Value
---         -----
password    45Ssdfljkshd4r

Creating a Secret Store 🔗

Now, we need to tell external-secrets where to fetch sensitive data.

First, we create a Kubernetes Secret containing the token to access Vault.

kubectl create secret generic vault-token --from-literal=token=$VAULT_TOKEN

Next, we create a SecretStore and specify where the secrets are stored. In this example, they are stored in Vault running at a specific URL.

cat <<EOF | kubectl apply -f -
apiVersion: external-secrets.io/v1beta1
kind: SecretStore
metadata:
  name: vault
spec:
  provider:
    vault:
      server: "${VAULT_ADDR}"
      path: my-app
      version: "v2"
      auth:
        tokenSecretRef:
          name: "vault-token"
          key: "token"
EOF

Testing 🔗

Since External-secret is in charge of creating a Kubernetes Secret from a resource of type ExternalSecret, we first define the specification of an ExternalSecret as follows.

apiVersion: external-secrets.io/v1beta1
kind: ExternalSecret
metadata:
  name: example
spec:
  refreshInterval: "15s"
  secretStoreRef:
    name: Vault
    kind: SecretStore
  target:
    name: example
  data:
 - secretKey: password
    remoteRef:
      key: my-app/data/admin
      property: password

Next, we create the resource.

kubectl apply -f external-secret.yaml

Using this CRD, external-secrets will trigger the creation of a Kubernetes Secret containing the password set at my-app/admin.

In the background, this creates a Kubernetes Secret named example.

$ kubectl get secret
NAME          TYPE     DATA   AGE
example       Opaque   1      5s     # <-- This one
vault-token   Opaque   1      7m

This secret has the property password in its data section.

$ kubectl describe secret example
Name:         example
Namespace:    default
Labels:       reconcile.external-secrets.io/created-by=45b719e2f6ed40358b2fb7face01965d
Annotations:  reconcile.external-secrets.io/data-hash: 3013839b15f8dcff348bbaf62d71a39f

Type:  Opaque

Data
====
password:  14 bytes

Decoding the value, we verify it contains the password stored in Vault.

$ kubectl get secret example -o jsonpath='{.data.password}' | base64 --decode
45Ssdfljkshd4r

Key takeaways 🔗

This example highlights how the External Secrets Operator creates a bridge between Vault and Kubernetes by automatically generating and updating standard Kubernetes Secrets based on the Vault data. This enables a workflow where teams can manage sensitive information centrally in Vault and applications can request specific secrets through ExternalSecret resources.
